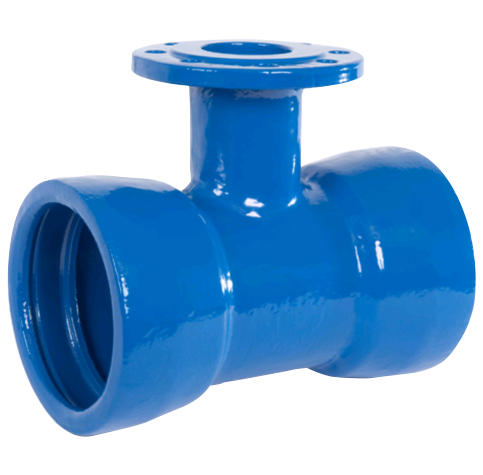

Double Socket Tyton tee with Flanged branch
Double Socket Tyton tee with Flanged branch
Application
Ductile cast iron fittings for drinking water and neutral liquids up to +70°C
Technical Characteristics
- Flange end connections according to EN1092-2: PN10/PN16
- Designed according to EN545
- Maximum working pressure: PN16 / 16 bar
- Working temperature: 0°C – +70°C
- Color RAL5015
- Powder epoxy coating 250 μm thickness
- Body from ductile iron EN-GJS-500-7
- WRAS approved epoxy coating
