Wall-Mounted Throttle Penstock

Wall-Mounted Throttle Penstock

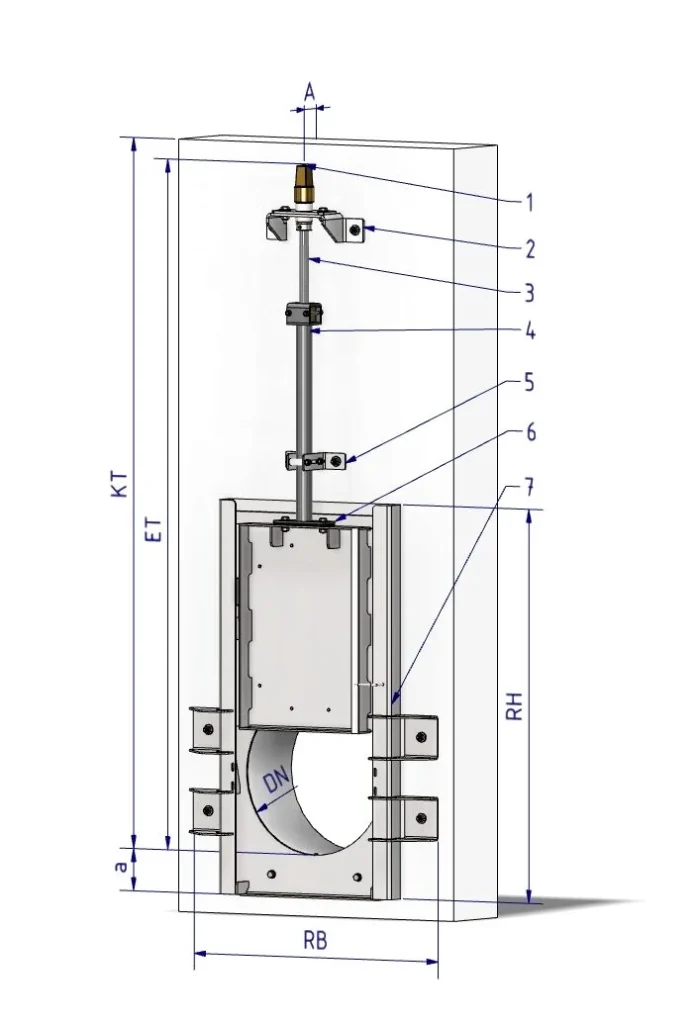

Tender specification: Wall-mounted throttle penstock according to DIN 19569 part 4 for anchor bolting to constructions according to DIN 18202, 4-face seal through slide way and wedging in the end position; 3-face seal in all middle positions, with circular conduit DN or rectangular conduit W X H.
Request Product

Welded design. Integrated u-shaped frame and plate with supporting ribs to the given static conditions. Assembling by means of anchor bolting, replaceable contour seal on the plate. Drive mounted in chamber with spindle and spindle protective tube, roller bearing, all machined surfaces of stainless steel shot blasted, incl. fasteners made of stainless steel SS A4. The permissible pressure load of the standard penstock is 6 mWC on-seating and 3mWC off-seating. Valves for greater loads on request.
